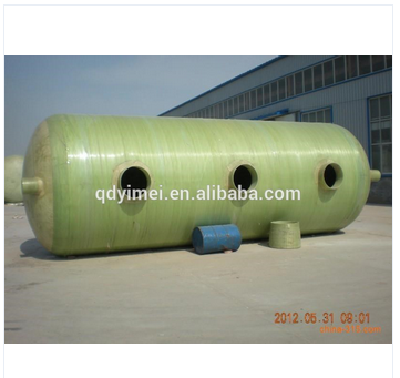

Corrosion-resistant Fiberglass/ FRP septic tanks for sale

Corrosion-resistant Fiberglass/ FRP septic tanks for sale

  • Min.Order Quantity: 1 Set
  • Supply Ability: 3000 Sets per Year
  • Port: China Port
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2009-06-24
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  50
  • Place of Origin:  NANNIN
  • Brand Name:  LK
  • Model Number:  Corrosion-resistant Fiberglass/ FRP septic tanks for sale
  • Weight: 1000.000 kg

Introduction:

The main body material of whole septic tank is glass fiber reinforced unsaturated polyester resin of high strength glass fiber composite materials , using advanced glass fiber reinforced plastic winding process made tank plus the bump surface wheel of head shape structure . steel degrees optimized design,unique structure design,leading technology , with the characteristic of light weight,high strength,well corrosion resistance,no leakage,no pollution,better formability ,long service life etc.

Both ends of tank equipped with inlet tube ,outlet tube and the tank top equipped with inspection hole, using partition mesh division in the tank, equipped with circulation flashing device in order to add sewage residence time, to improve corrupt effect.


Scope of application:

Used in preliminary treatment domestic sewage and fecal sewage in residence community building,office building,school,sanatorium ,workshop etc industrial civil building .


Work Principle:

Septic-tank is primary treatment structures which remove the suspended matter in domestic sewage by adopting sediment and anaerobic fermentation principle, domestic sewage contain plenty of feces,Paper Scrap,parasite etc impurity, the suspended solid concentration is 100-350mg, organism concentration BOD5 is between 100-400mm, the suspended organism BOD is 50-200mg among of them. sewage enter into septic-tank will remove 50%—60% suspended matter after 12-24h sediment , the sediment sludge will anaerobic digestion above 3 month, which will make the organism decompose stable inorganics, corruptible raw sludge translate to ripe sludge , it changed sludge structure, reduce sludge water ratio , clear it and transport out regular. Landfill or reuse it as fertilizer.


Feature:

1. Use high quality FRP composite material to make, with the advantage of antiacid,alkali-resistant ,pull-resistant,high strength etc.

2. good tightness ,no leakage,completely prevent the pollution of traditional the septic tank ground water leakage. At the same time, improve the damage to building from foundation wet soft sink, with the better environmental protection efficiency.

3. Using unique structure design and high efficient membrane packing , high removal efficiency,small occupy area ,area selection flexible, special suitable for old city building area reform sewage system to set up septic tank.

4. Light weight, convenient to transport. integral construction, no need assembly, install speedy.
5. High compression strength, can install in afforest lawn or below the path


Performance index:

serial

Inspection item

Standard index

1

tensile strength (Mpa)

≥ 110

2

impact ductility ( Kj/m3)

≥ 60

3

bending strength(Mpa)

≥ 100

4

Compress strength(Mpa)

≥ 40

5

Barcol hardness (Mpa)

≥ 40

6

Acid Endurance

10% sulfuric acid solution soak 96h, no abnormal

7

Alkali Resistance

10% Sodium Hydroxide soak 96h, no abnormal


Specification

Standard Model

Effective Volume     m³

Diameter(D)

Length(L)

Inlet pipe diameter

(R1)

Outlet pipe diameter

(R2)

Inlet Elevation

(H1)

Outlet Elevation (H2)

Inspect hole

QTY

Weight

(kg)

YMFC-1

2

1200

2300

150

150

950

850

1

80







Septic tank treatment capacity data sheet

item

pH

SS (mg/L)

CODcr(mg/L)

BOD5(mg/L)

NH3-N(mg/L)

allow maximum value

6~9

400

500

300

-

untreated waste water

6.68

935

1670

395

130

septic tank water outlet

7.30

35

150

56

45

Septic tank selection sheet (only for referring not as standard)

coefficient


volume(m³)

100%

70%

40%

stating

1

5-10

10-15

15-20

100% is hospital , sanatorium etc person nm

70% is residence , hotel , restaurant etc
40% is teaching building
, workshop| , office etc

2

10-20

20-30

30-40

4

40-60

60-80

80-120

6

80-100

100-140

140-160

9

100-130

130-160

160-220

12

130-170

170-200

220-290

16

200-250

250-320

330-400

20

250-300

300-400

400-500

25

300-350

350-480

480-580

30

350-400

430-510

570-640

40

400-500

500-600

600-700
